產品信息：

分體/一體移動便攜式超薄車底掃描系統是一套集自動檢測車輛、并對車輛底盤進行圖像采集、顯示、拼接、抓拍匯總、比對報警、自動環控為一體的車輛安檢系統。

該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入政府機關、軍事管理、銀行庫區、車站碼頭等重要安全保護場所；

防止車底攜帶毒品與槍支彈藥等危險品、非法走私物乃至可疑人物通過海關、邊防檢查站，

防止被關押人員潛逃出監獄、看守所、戒毒所等；

同時可對列車、汽車等車輛底盤進行交通安全檢測及車況質量檢查評估等應用。

Product Information：

Split/Integrated Mobile Portable Ultra-thin Vehicle Chassis Scanning System is a set of automatic detection of the vehicle chassis, and the vehicle chassis image acquisition, display, splicing, capture summary, compare the alarm, automatic loop control as one of the vehicle security system.

The system can effectively prevent the car underneath the hidden bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank warehouses, stations and terminals and other important security protection places;

Preventing the undercarriage of dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons from passing through customs and border checkpoints.

Prevent detainees from absconding from prisons, detention centers, drug rehabilitation centers and so on;

At the same time, it can be applied to the chassis of trains, automobiles and other vehicles for traffic safety testing and quality inspection and assessment of vehicle conditions.

（一體式航空箱）

應用場景：

1、國家大型會議、運動會、展會等活動的車輛出入口的臨時安全防范、反恐檢查；

2、監獄、看守所、戒毒所等的臨時出入口防逃檢查；

3、機場、政府、銀行庫區、保稅區、大使館、港口碼頭、車站、軍隊、公安等重點場所的出入口、停車場的反恐防夾帶檢查；

4、海關、邊檢口岸的檢查卡口的臨時防走私、反偷渡檢查；

5、交通安全檢查站、車輛檢測中心、4S店維修車間、新能源換電站等的車輛性能檢測。

Application Scenario：

1. Temporary security prevention and anti-terrorism checks at the entrances and exits of vehicles for large national conferences, games, exhibitions and other events;

2, The temporary entrance and exit of prisons, detention centers, drug rehabilitation centers, etc. to prevent the escape check;

3, Anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, port terminals, stations, military and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.

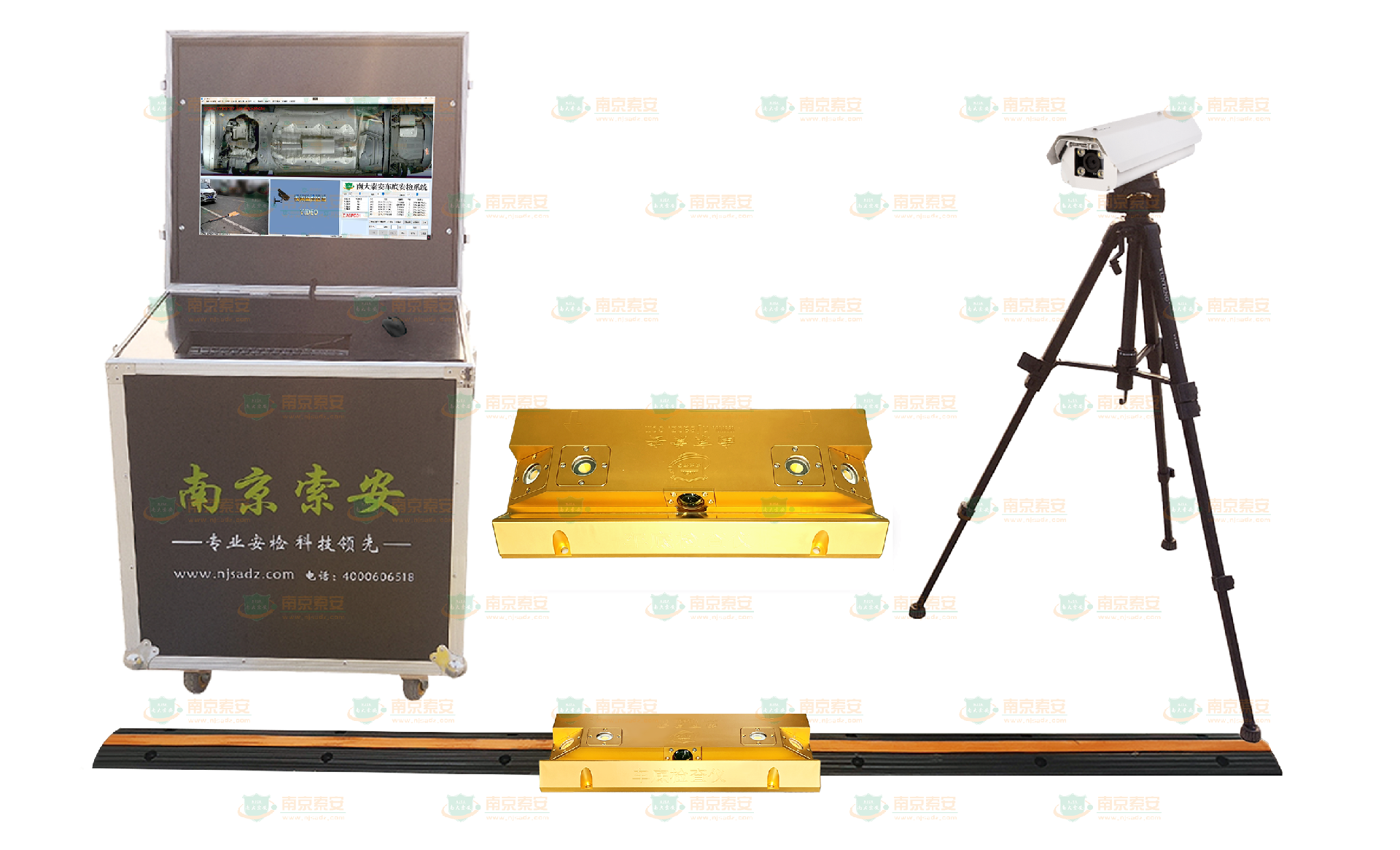

（分體式）

產品介紹：

1、掃描圖像采集：數字高清高速千兆掃描彩色相機；GigE接口；

2、拍攝寬度：≥4000mm；

3、拍攝車輛長度：≥16000mm；

4、視場角度：≥178o；

5、拍攝車底高度：0~2000mm（適應不同底盤高度的車輛）；

6、車輛通過速度：（建議）1-30Km/h；（可根據現場實際情況調整車速）；

7、圖象采集方式：車輛檢測系統自動觸發；

8、底盤圖像數據傳輸距離：≤100 米（TCP/IP）

9、圖片類型：彩色JPG格式；

10、車底圖片分辨率：優于6000*2048像素；

11、圖片失真：小于5%；

12、具有良好的防潮、防霧、防腐蝕、防震動性能；

13、車底成像設備采用高強度抗壓、整體防塵防水等級：IP66。

14、照明組件：4顆單體密封LED面光源；壽命：60000h

15、環境溫度：－30度~＋60度

Product introduction：

1、Scanning Image Capture：Digital HD high-speed gigabit scanning color camera; GigE interface;

2、Shooting width：≥4000mm;

3、Shooting Vehicle Length：≥16000mm;

4、Field of View Angle：≥178o;

5、Photographing Vehicle Chassis Height：0~2000mm（Adapt to different vehicle chassis height of the vehicle）;

6、Vehicle passing speed：(Recommended)1-30Km/h；(Can adjust the speed according to the actual situation on the spot);

7、Image acquisition mode：vehicle detection system automatically triggered;

8、Vehicle chassis image data transmission distance： ≤ 100 meters (TCP / IP)

9、Image type：color JPG format;

10、Vehicle chassis picture resolution：better than 6000 * 2048 pixels;

11、Picture distortion：less than 5%;

12、Has a good moisture-proof, anti-fog, anti-corrosion, anti-vibration performance;

13、Vehicle chassis imaging equipment using high-strength pressure, overall dust and waterproof grade: IP66.

14、lighting components：4 single sealed LED surface light source; life: 60000h

15、Ambient temperature：-30 degrees~+60 degrees

功能概述：

1、可一體化移動、可分體式方便攜帶，并高清完整車底成像；

2、超低的路面掃描直視式采集儀，對低底盤車輛可以無損自由通檢；

3、雙向緩坡式可固定路面；

4、智能全視角車底補光照明及車底盤180度全景成像；

5、可集成車牌、車號、箱號等識別，并可支持多個品牌的車底、車牌等采集相機接入，便于系統集成；

6、可集成隨車人員信息與物品安檢信息并關聯記錄查詢；

7、可啟用智能判圖后異常報警聯動周邊設備協同工作；

8、可無線聯網多個車道集成顯示并上傳中央管理平臺；

9、可國產操作系統、嵌入式系統環境下運行；

10、支持多國語言界面切換。

Function overview：

1, Can be integrated mobile, can be split for easy carrying, and high-definition complete vehicle chassis imaging;

2, Ultra-low road scanning direct vision acquisition instrument, low chassis vehicles can be non-destructive free pass inspection;

3, Two-way gentle slope can be fixed pavement;

4, Intelligent full-view underbody lighting and 180-degree panoramic imaging of chassis;

5, Can integrate license plate, car number, box number and other recognition, and can support multiple brands of car under, license plate and other acquisition camera access, easy system integration;

6, Can integrate the vehicle personnel information and items security information and associated record query;

7, Abnormal alarm linkage peripherals can be enabled after intelligent judgment;

8, Wireless networking multiple lanes integrated display and upload to the central management platform;

9, Can run under domestic operating system, embedded system environment;

10, Support multi-language interface switching.

特色優勢：

1.分體式：2只小型航空箱分開包裝，方便小型執勤車輛攜帶；

2.一體化:航空箱可移動，方便快速設卡布防安檢。

3.超低可移動式車底高清檢查可使低底盤車輛無損自由通檢；

4.智能感應式成像照明控制；

5.可人像采集與身份證錄入，

6.可配智慧判圖異常報警。

Characteristic advantage：

1.Split:two small aviation cases are packed separately, convenient for small duty vehicles to carry;

2.The integrated aviation case can be moved to facilitate the quick installation of cards for security check.

3.Ultra-low mobile car bottom HD imaging inspection, can make low chassis vehicles non-destructive free inspection;

4.Intelligent induction imaging lighting control;

5.Can be portrait collection and ID card input,

6.Can select intelligent judge map abnormal alarm
